The best vehicle arm barrier gate for security access in Singapore
Vehicle Arm Barrier Gate - ST200
Vehicle Arm Barrier Gate -ST200 usually work neither standalone or access control system.
- Ensure the safety and security of specific area especially private residential,construction site or commercial area.
- Work with RFID Cards, Auto-pay, parking ticketing system, or biometric face/fingerprint solution.
- Combination of unique lever design and smart motor control allow swift arm movement that reduces bouncing at end position.
- Compressed counter balance spring avoid possibility of spring over-stressed and break due to high volume continuous open/close cycle.
- Additional photo beam sensor can be added to further enhance safety.
- Built-in MCB to protect against any electric hazard.
Product Rating
5/5

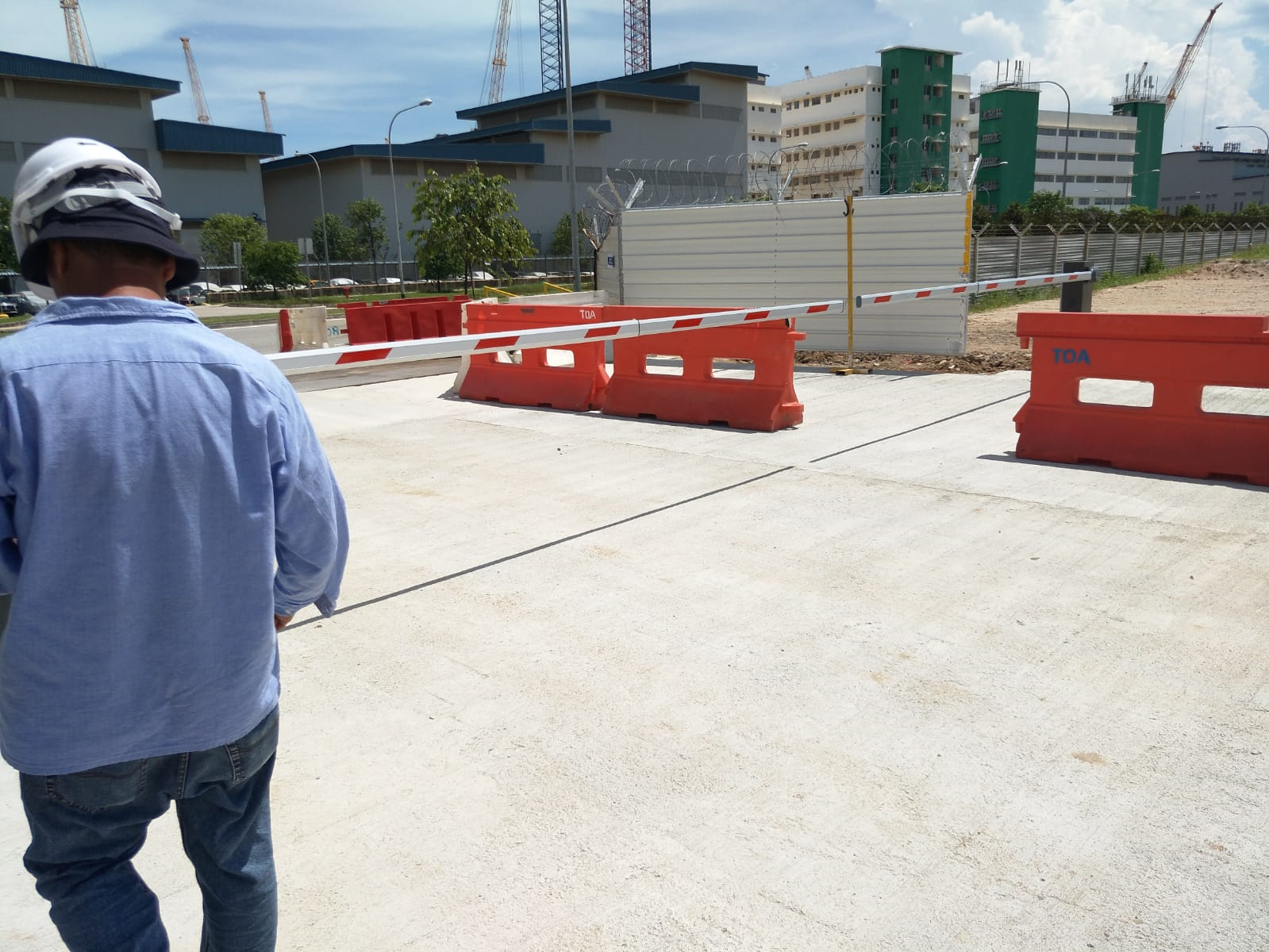

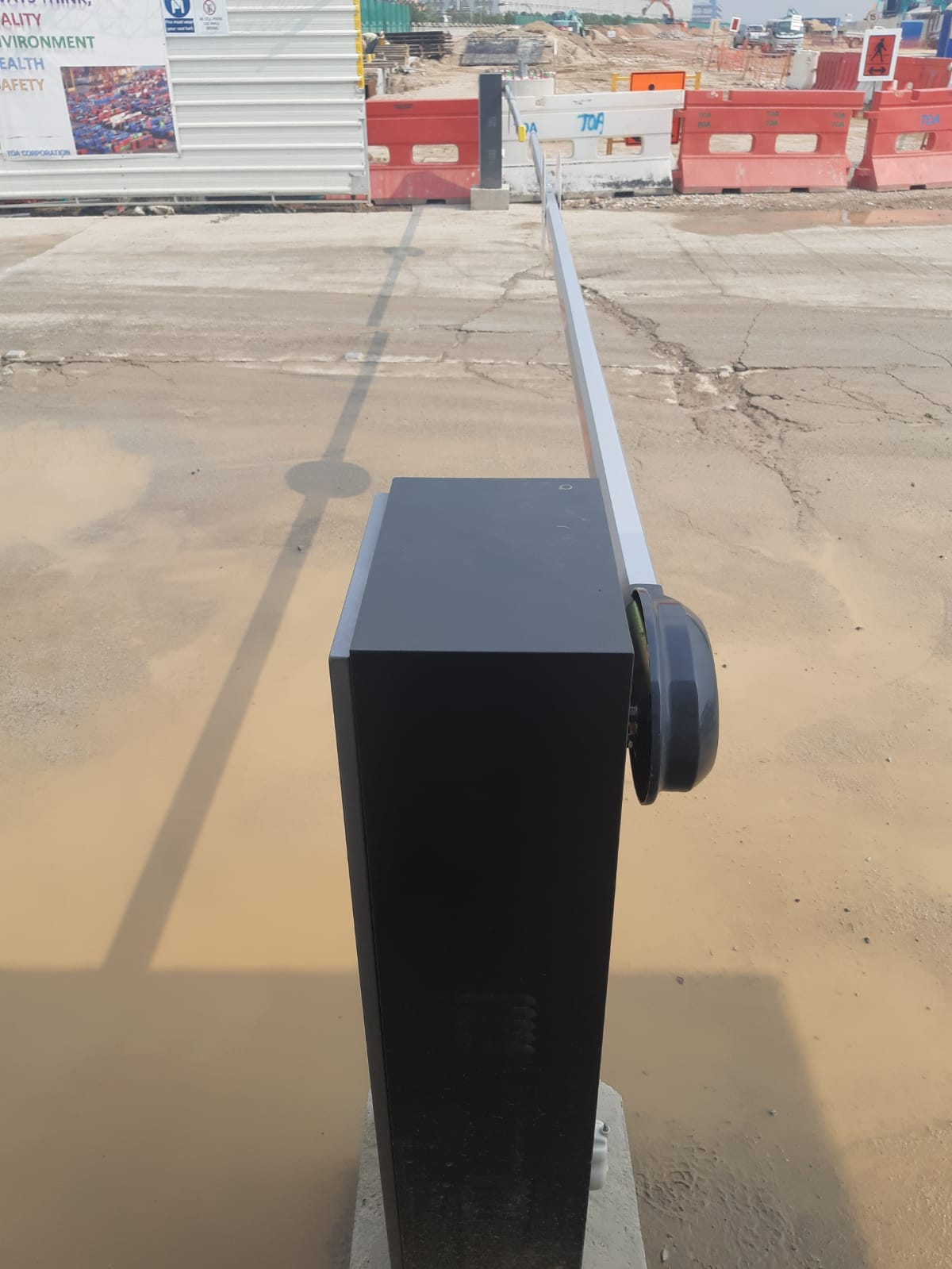

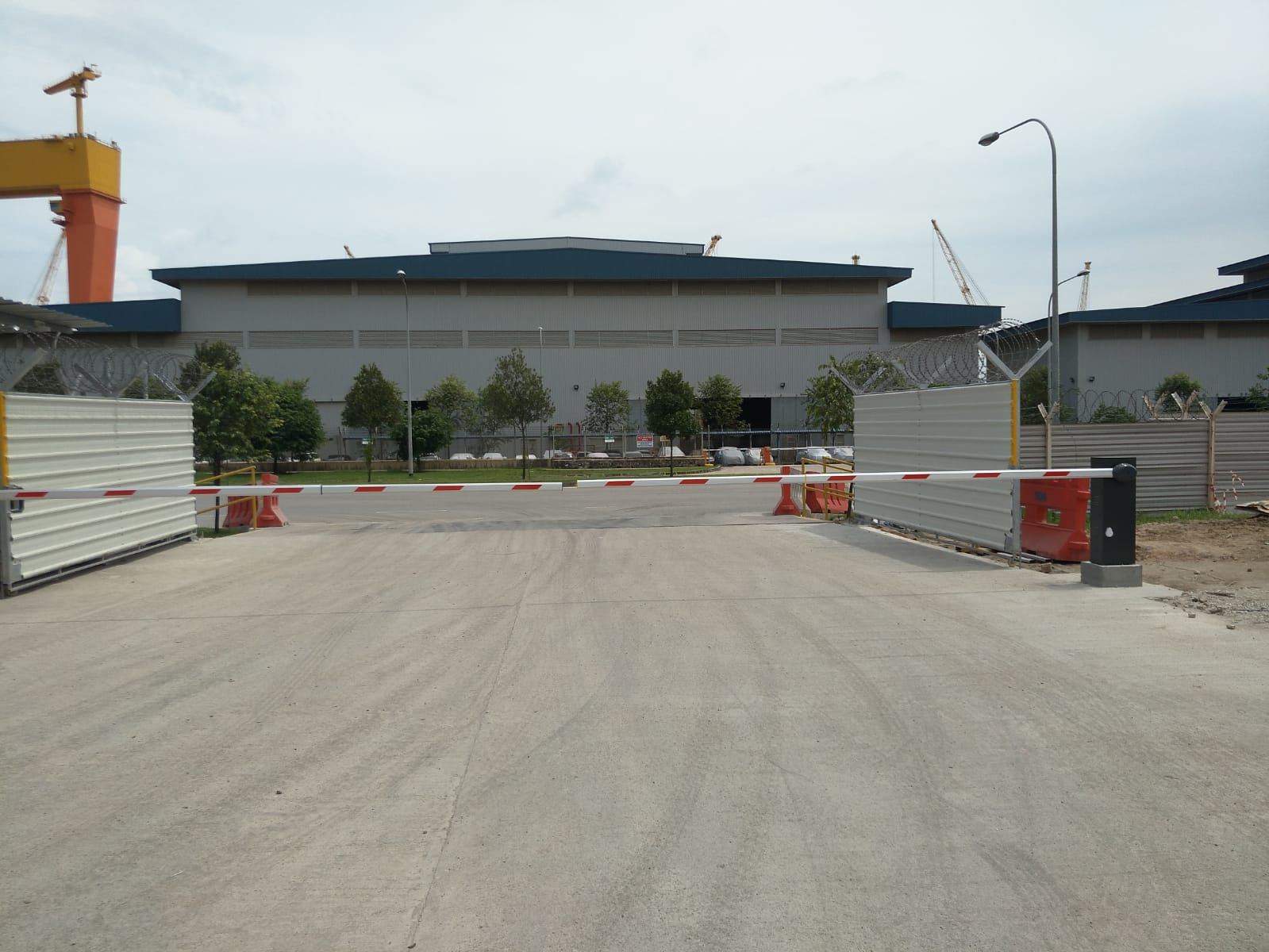

Sample Project Images
-
- Vehicle Arm Barrier Gate
-
- 3, 4, 6 meter setting
-
- Construction Site
Specifications of vehicle arm barrier gate - ST200
| Type | Straight Boom |
| Opening & Closing Time | 3 meter : 1.5s |
| 4 meter : 3s | |
| 6 meter : 6s | |
| Voltage | 220V/110+-10% |
| Frequency | 60Hz/50Hz |
| Motor Power Consumption | 100W |
| Working Temperature | -40 – 85 |
| Housing Dimension | 330 x 230 x 1030 mm (Width*Depth*height) |
| Weight not including Barrier Boom | 45kgs |
| Drive | Torque Motor |
| Maximum Remote Control Distance | 30 meters |
