Biometric Facial Recognition Device
Advanced Technology of Facial Recognition Device Supplier in Singapore
Touch-Free Face Recognition Solution
Smart Touch adopt AI deep learning facial recognition technology to measures and matches the unique face characteristics for the purposes of identity verification. The face recognition reader use high imaging camera to detect real faces and match them against stored face templates in a database.
Superior Recognition in Any Environment
Now days, face recognition terminals offer bigger storage capacity up to 100,000 face template and greatly improve recognition speed at less than 0.2 seconds per user. It’s tested with proven solution to overcome low light environment and even in darkness as well strong sunlight lux impact. Face detection system is designed with top security measure which support face anti spoofing through liveness check and data encryption.
Best Application for Time Attendance and Access Control System
The use of face recognition in access control and time attendance has been an inevitable trend. With advanced deep learning technology and practical functions, our solution provide better security and improved efficiency to access control and time attendance tracking. Using contact-less face authentication terminals able to improve hygiene and reduce virus spread
High Techology Facial Recognition Device
Basic Facial Recognition Device

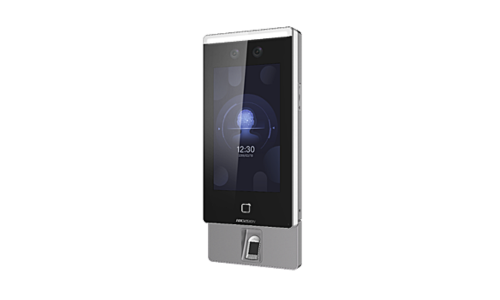

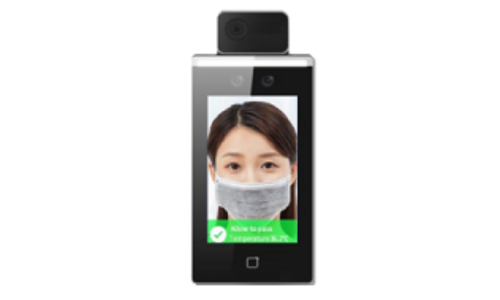

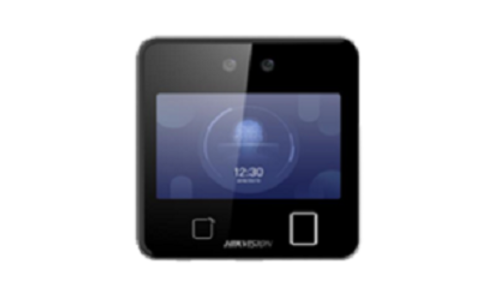

Features of High Technology Facial Recognition Device
| Supports Vanadium Oxide uncooled sensor to measure target’s temperature |
| Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: ± 0.5 °C |
| Recognition distance: 0.5 to 1.5 m |
| Fast temperature measurement mode: Detects face and takes body temperature without identity authentication. |
| Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc. |
| Face mask wearing alert If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid. |
| Forced mask wearing alert If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed. |
| Displays temperature measurement results on the authentication page |
| Imports and export data to the device from the client software |
| Transmits online and offline temperature information to the client software via TCP/IP communications and saves the data on the client software |
| Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out. |
| 4.3-inch touch screen |
| 2 MP wide-angle dual-lens |
| Face anti-spoofing |
| Face recognition distance:Â 0.3 m to 1.5 m |
| 6,000 face capacity, 10,000 card capacity, 5,000 fingerprint capacity (should be supported by device model) and 150,000 event capacity |
| Face recognition duration ＜ 0.2 s/User |
| Two-way audio with indoor station and master station |
| Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out |
| Remotely opens door and starts live view via Hik-Connect |
| Configuration via the web client |
| 7-inch LCD touch screen |
| 2 MP wide-angle dual-lens |
| Adjusts supplement light brightness manually |
| Face identification in dark environment |
| Suggested height for face recognition: between 1.4 m and 1.9 m |
| Deep learning algorithm |
| 20,000 face capacity, 5,000 fingerprint capacity, and 100,000 event capacity |
| Multiple authentication modes |
| Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99% |
| Imports card and user data to the device via TCP/IP communication |
| Stand-alone operation |
| Transmits data to the client software via TCP/IP communication and saves the data on the client software |
Specifications of High Technology Facial Recognition Device
| Model/Specs | ST-70T | ST-642 | ST-671 |
|---|---|---|---|
| Sensor | Vanadium Oxide uncooled sensor | ||
| Card capacity | 6,000 | 10,000 | 50,000 |
| Event capacity | 100,000 | 150,000 | 100,000 |
| Face capacity | 6,000 | 6,000 | 20,000 |
| Face recognition distance | 0.5 to 1.5 m | 0.3 m to 1.5 m | 0.3 m to 3 m |
| Face recognition duration | ＜ 0.2 s per person | ＜ 0.2 s per person | ＜ 0.2 s per person |
| Temperature Range | 30 °C to 45 °C (86 °F to 113 °F) | ||
| Camera | 2 MP dual-lens camera, WDR | 2 MP dual-lens camera, WDR | 2 MP dual-lens camera, WDR |
| Power supply | 12 VDC/2 A | 12 DC, 2 A | 12 DC, 2 A |
| Wired network | Support, 10/100/1000 Mbps self-adaptive | 10 M/100 M/1000 M self-adaptive | 10 M/100 M/1000 M self-adaptive |
| Recognition mode | Face: 1:1 and 1:N | Face: 1:1 and 1:N Fingerprint: 1:1 and 1:N |

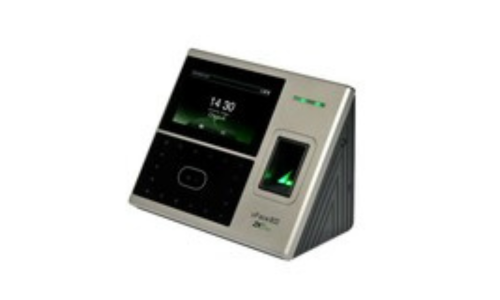

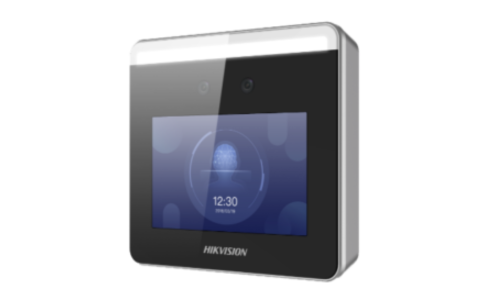

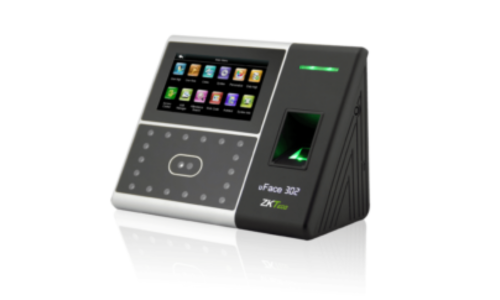

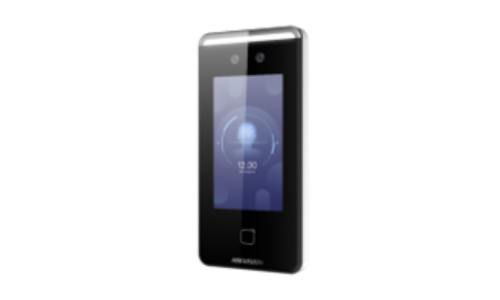

Features of Basic Facial Recognition Device
| Identification methods include Face, Fingerprint/RFID and/or Password. |
| Elegant ergonomic design. |
| 4.3’’TFT touch screen is user-friendly and very intuitive. |
| 6 user-defined function keys. |
| Contact relays for door access control (wires to door strike or 3rd party panel). |
| Web server management software via IE browser. |
| Optional extendable scheduled-bell. |
| Infra-red optical system enables user-identification in poorly lit environments. |
| Optional built-in battery backup provides approx 4 hours continuous operation. |
| Able to detect whether the face is an actual face or a photo, enhancing the security level of verification. |
| Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell. |
| <2 seconds Fast Verification Speed. |
| Identification methods include Face Recognition, Fingerprint/RFID and/or Password |
| Sim Card slot support 3G/4G network |
| Portable mobile concept, 4.3’’TFT touch screen is user-friendly and very intuitive |
| Capacity: 3,000 faces and 4,000 fingerprint |
| Online Data Management – WDMS: work with 3G/4G network |
| 4.3-inch touch screen |
| 2 MP wide-angle dual-lens |
| Face anti-spoofing |
| Face recognition distance:Â 0.3 m to 1.5 m |
| Deep learning algorithm |
| 1500 face capacity, 1,500 card capacity, 1,500 fingerprint capacity (should be supported by device model) and 150,000 event capacity |
| Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99% |
| Capture linkage and captured pictures storage |
| Transmits card and user data from or to the client software via TCP/IP protocol and saves the data on the client software |
| Imports pictures from the USB flash drive to the device or export pictures, events, from the device to the USB flash drive |
| Stand-alone operation |
| Manage, search and set device data after logging in the device locally |
| 3.97-inch touch screen |
| 2 MP wide-angle dual-lens |
| Face anti-spoofing |
| Face Validity distance: 0.3 m to 1.5 m |
| Deep learning algorithm |
| 300 face capacity, 1,500 card capacity (when connecting external card reader); 150,000 event capacity, and up to 20,000 captured pictures storage |
| Face Validity duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99% |
| Capture linkage and captured pictures storage |
| Transmits card and user data from or to the client software via TCP/IP protocol and saves the data on the client software |
| Imports pictures from the USB flash drive to the device or export pictures, events, from the device to the USB flash drive |
| Stand-alone operation |
| Manage, search and set device data after logging in the device locally |
Specifications of Basic Facial Recognition Device
| Model/Specs | Uface 302 | Uface 800 | ST-341 | ST-331 |
|---|---|---|---|---|
| Screen | 4.3-inch TFT | 4.3-inch TFT | 4.3-inch | 3.97-inch |
| Card capacity | 10,000 | 10,000 | 1,500 | 1,500 |
| Event capacity | 150,000 | 150,000 | ||
| Face capacity | 3,000 | 3,000 | 1,500 | 300 |
| Face recognition distance | 0.3 m to 1.5 m | 0.3 m to 1.5 m | ||
| Face recognition duration | ＜ 0.2 s per person | ＜ 0.2 s per person | ||
| Power supply | 12 V, 3 A | 12 V, 3 A | 12 DC, 2 A | 12 V, 1.5 A, 18 W |
| Wired network | 10 M/100 M/1000 M self-adaptive | 10 M/100 M/1000 M self-adaptive |
